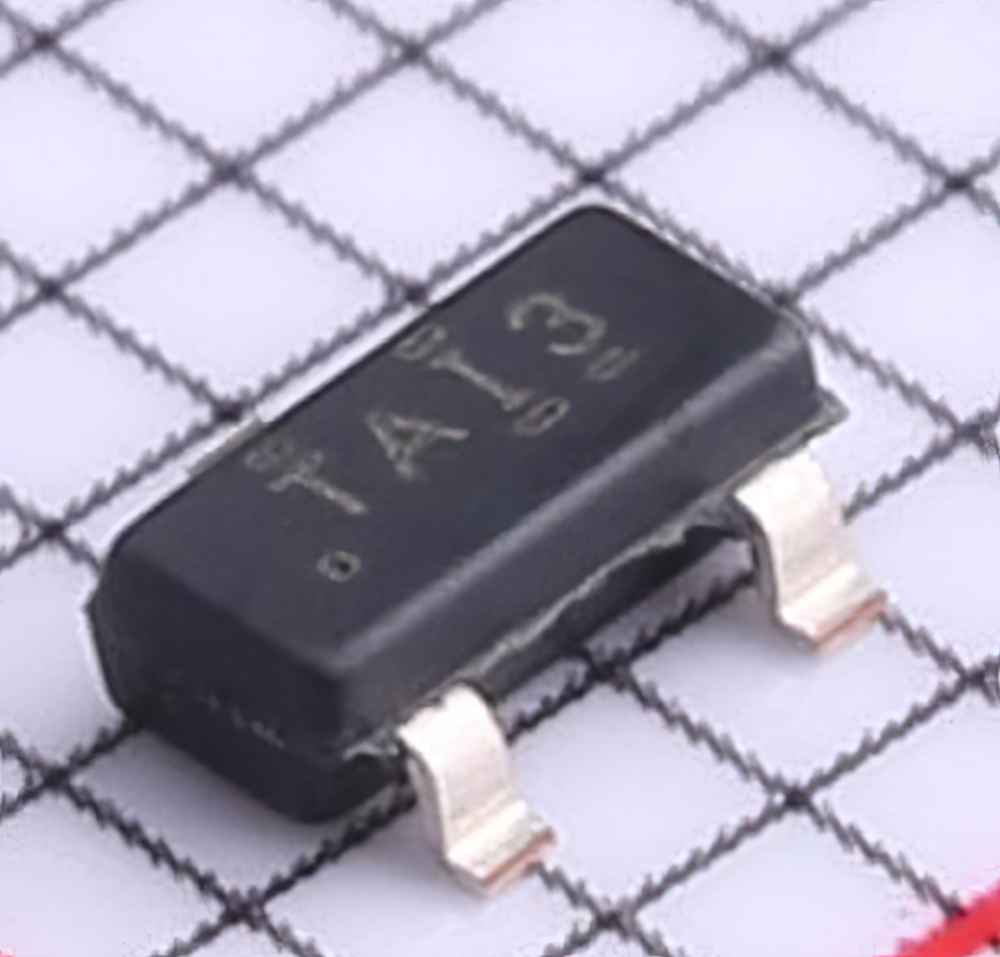

The TI TL431 AIDBZR is a popular adjustable shunt regulator used in Power supplies, voltage reference applications, and various other electronic systems. While it is a reliable and efficient component, like any other electronic part, it can face operational issues. This article explores common troubleshooting techniques and practical solutions to ensure the TL431AIDBZR operates at its best.
TL431AIDBZR, Troubleshooting,Solutions, Electronic components, Voltage reference, Shunt regulator, Circuit design, Power supply, Common issues, Electronics repair
Common Issues with TL431AIDBZR and How to Troubleshoot Them
The TL431AIDBZR is a key component in many electronic circuits, particularly in power supplies and voltage regulation systems. However, despite its popularity and reliable performance, engineers and hobbyists occasionally encounter challenges when using the TL431AIDBZR. These problems can arise from various factors, such as improper wiring, insufficient power supply, or component faults.
1. TL431AIDBZR Not Regulating Correctly
One of the most common issues with the TL431AIDBZR is improper regulation of the output voltage. In a typical setup, the TL431 should maintain a stable voltage, but if the output voltage fluctuates or is incorrect, there are several things to check:
Check the Reference Pin: The TL431AIDBZR has a reference pin (pin 1) that typically receives feedback from the voltage divider to maintain the set voltage. If the reference pin is not properly connected or is floating, the component may fail to regulate the voltage correctly. Ensure that the feedback network is set up according to the datasheet specifications.
Verify the Cathode Pin Voltage: The cathode pin (pin 3) should be at the appropriate voltage level for the TL431AIDBZR to function correctly. If the cathode voltage is too low or too high, the part may not regulate properly. Check the input voltage to ensure it is within the specified range for the TL431.
Resistor Network Issues: The resistors used in the feedback network can be a source of trouble. If the resistor values are incorrect or the resistors themselves are damaged, the TL431 may not regulate the output as expected. Use a multimeter to check the resistance values and verify that they match the design specifications.
Insufficient Load Current: If the load current is too small or too large for the TL431AIDBZR, it may not provide proper regulation. Ensure that the load connected to the TL431 does not exceed the rated current capacity.
2. Output Voltage Drifting
Another frequent issue users encounter is the drift of the output voltage over time, which could be caused by several factors:
Thermal Instability: The TL431AIDBZR is sensitive to temperature changes, and significant temperature variations can lead to shifts in the output voltage. Ensure the TL431 is operating within its thermal limits by placing it in a well-ventilated area or adding a heat sink if necessary.
Low-Quality Capacitors : The TL431 requires proper decoupling and bypassing to ensure stable operation. Low-quality or damaged capacitor s can result in voltage instability. Make sure the capacitors in the circuit meet the recommended specifications and are not degraded or faulty.
Power Supply Fluctuations: A noisy or unstable power supply can affect the TL431’s performance. Check for any fluctuations in the input voltage or noise on the power rail. Adding a filter or a regulator upstream can help smooth out any irregularities in the power supply.
3. Overheating of the TL431AIDBZR
Overheating is a common issue in electronic components, and the TL431 is no exception. If the component overheats, it can malfunction or even get damaged. The reasons for overheating could include:
Excessive Current Draw: If the current draw through the TL431AIDBZR is too high, it will generate excess heat. Ensure that the current limit of the TL431 is not exceeded by checking the load on the circuit.
Improper Power Dissipation: The TL431AIDBZR has an internal voltage drop, which results in power dissipation. If the TL431 is not placed in a position where it can dissipate heat effectively, it can lead to thermal runaway. Proper heat sinking or improving airflow around the component can help mitigate this issue.
Circuit Design Flaws: Poorly designed circuits that place unnecessary strain on the TL431AIDBZR can result in overheating. Recheck the design, especially the resistor and capacitor network, and ensure that they are sized appropriately to prevent excessive power loss.
Solutions for Improving Performance and Avoiding Common TL431AIDBZR Issues
Addressing the common problems associated with the TL431AIDBZR is crucial for ensuring its reliable operation and longevity. In this section, we’ll focus on preventive measures and corrective actions to optimize the performance of the TL431AIDBZR.
1. Proper Circuit Design
The foundation for reliable performance of the TL431AIDBZR begins with a robust circuit design. Proper design ensures that the component functions within its specifications, preventing many common issues such as poor voltage regulation and overheating.
Use Adequate Resistor Values: Ensure the feedback resistors are chosen according to the TL431AIDBZR’s reference voltage (typically 2.495V). Correct resistor values will ensure that the output voltage is stable and within the desired range. Use precise resistors with a low tolerance to minimize the chances of voltage drift.
Ensure Proper Pin Connections: The TL431AIDBZR has three primary pins: anode, cathode, and reference. Double-check the pin connections during assembly to ensure they correspond to the correct parts of the circuit. A mistake in wiring could lead to significant functional issues.
Decoupling Capacitors: A stable power supply is essential for optimal TL431 operation. To minimize noise and improve stability, use appropriate decoupling capacitors (usually ceramic types with a value between 0.1µF and 10µF) close to the TL431’s power supply pins.
2. Efficient Heat Management
Thermal management plays a crucial role in maintaining the TL431AIDBZR’s performance and reliability. Overheating can lead to inaccurate regulation or permanent damage. Several steps can be taken to ensure optimal heat dissipation:
Add a Heat Sink: If the TL431AIDBZR is operating at high currents or under heavy load conditions, consider adding a heat sink to the component. A small aluminum heat sink can greatly improve heat dissipation and prevent overheating.
Improve Airflow: Ensure that the TL431AIDBZR is mounted in an area with sufficient airflow. If the circuit is enclosed in a box, consider adding ventilation holes to allow heat to escape. For high-power applications, active cooling might be necessary.
Monitor Temperature: Use an infrared thermometer or thermocouple to monitor the temperature of the TL431 during operation. If temperatures exceed the maximum rated limits, consider redesigning the circuit or adding more cooling measures.
3. Power Supply Stability
The TL431AIDBZR depends on a stable and clean power supply to function correctly. Power fluctuations can lead to erratic voltage regulation and even damage the component. Here’s how to ensure power supply stability:
Use a Low Noise Power Supply: A high-quality, regulated power supply is essential for the TL431 to work as intended. If the power supply is noisy or unregulated, it can introduce instability into the circuit. Opt for a well-regulated, low-noise power supply to ensure smooth operation.
Add a Filter Capacitor: To filter out any high-frequency noise, place a capacitor (typically 100nF to 10µF) across the power supply input pins. This will reduce noise and provide cleaner voltage to the TL431AIDBZR.
Avoid Ground Loops: Ground loops can introduce noise and instability in the circuit. Ensure that the ground connections in the circuit are properly designed, with a single point of reference to avoid ground potential differences.
4. Comprehensive Testing and Quality Control
Finally, ensure that the TL431AIDBZR is thoroughly tested before deployment in a critical application. Perform regular checks on the component and the surrounding circuit to catch issues early:
Use a Multimeter: Regularly use a multimeter to check the voltages at key points in the circuit, including the anode, cathode, and reference pins. This will help you verify that the TL431AIDBZR is functioning correctly.
Use Oscilloscope for Stability Checks: An oscilloscope can help you monitor the output voltage waveform. A stable output should be a flat DC voltage with minimal noise. If the waveform shows significant ripple or noise, it could indicate a problem with the component or the surrounding circuit.
By addressing the common troubleshooting issues and implementing these solutions, users can ensure that the TL431AIDBZR operates at its full potential, providing accurate and stable voltage regulation for a variety of applications. With proper circuit design, thermal management, and power supply stability, the TL431AIDBZR can continue to serve as a reliable and efficient component in your electronic systems.
