Understanding the STM32H750VBT6 and Identifying Common Issues

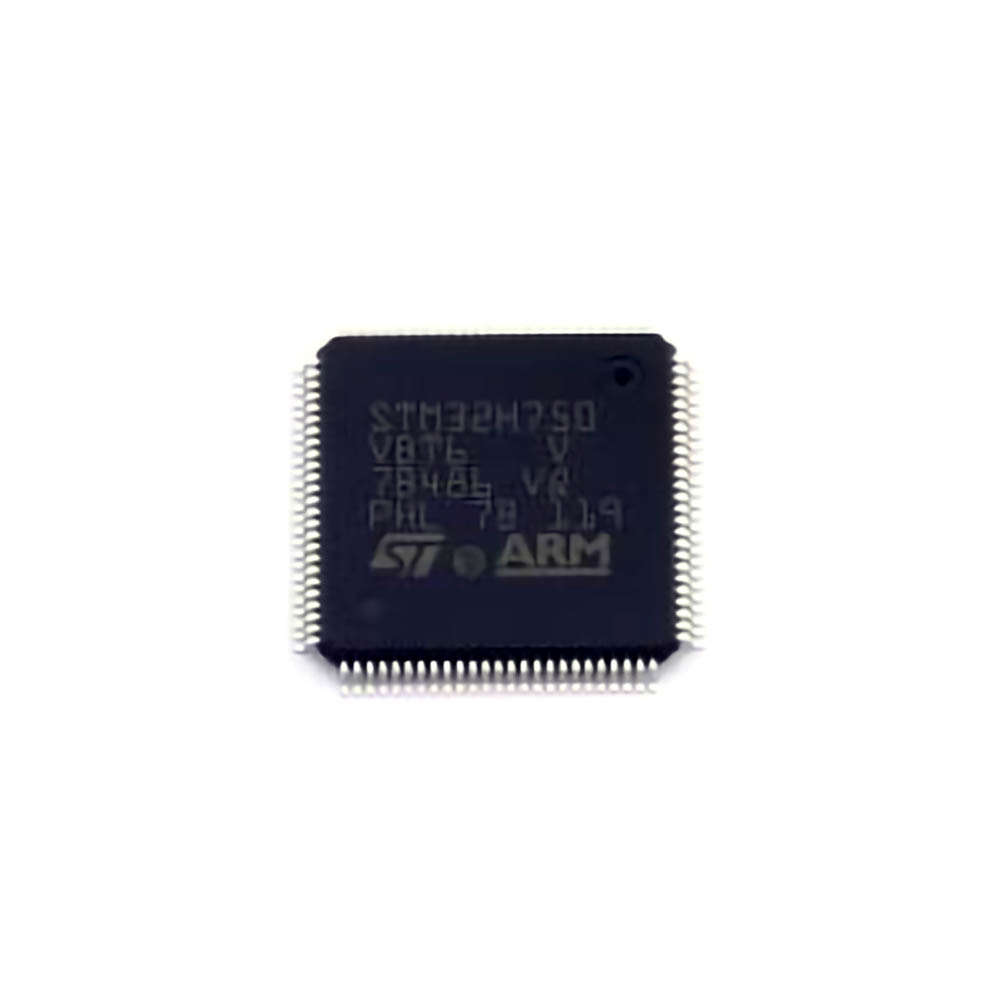

The ST STM32H750VBT6 is a Power ful microcontroller from STMicroelectronics, part of the STM32H7 series. It features an ARM Cortex-M7 core, running at 480 MHz, with 2 MB of flash Memory and 1 MB of SRAM. The chip’s versatility and performance make it ideal for applications in industrial automation, IoT devices, automotive systems, and more. However, like any advanced embedded system, developers often face challenges during development and deployment. This article aims to help developers troubleshoot common issues associated with the STM32H750VBT6.
1. Power Supply Issues
One of the most common sources of problems with the STM32H750VBT6 is related to the power supply. Microcontrollers like the STM32H750VBT6 require a stable and sufficient voltage to function properly. Any irregularities in the power supply can lead to erratic behavior, crashes, or failure to boot.
Possible Causes:
Inadequate Voltage Supply: The STM32H750VBT6 operates at 3.3V, and if the voltage supplied is too high or too low, the microcontroller may fail to power up or behave unpredictably.
Voltage Ripple or Noise: Fluctuations in the power supply, often caused by poor PCB design or inadequate decoupling, can lead to the instability of the system.
Inconsistent Grounding: A poor or inconsistent ground connection can also cause voltage irregularities, affecting the microcontroller’s performance.
Solutions:
Use a Stable Power Source: Ensure that your power supply provides a steady 3.3V output. If using batteries or external power adapters, verify their output using a multimeter.
Implement Proper Decoupling: Use capacitor s close to the power supply pins of the STM32H750VBT6 to smooth out voltage spikes and noise. Typically, 100nF ceramic capacitors are used for high-frequency decoupling, while 10µF electrolytic capacitors are used for low-frequency decoupling.
Check Grounding: Ensure that all ground connections are solid and that there are no ground loops. A good ground plane on your PCB can help reduce noise.
2. Communication Errors (UART, SPI, I2C)
Communication interface s like UART, SPI, and I2C are essential for the STM32H750VBT6 in many applications. Problems with these interfaces often stem from incorrect configuration or signal integrity issues.
Possible Causes:
Incorrect Baud Rate or Settings: If you are working with UART, ensure that the baud rate, stop bits, parity, and other settings match on both ends of the communication link.
Clock Configuration Issues: For SPI or I2C, improper clock settings can cause the devices to malfunction or fail to communicate.
Signal Integrity Problems: Poor PCB layout, excessive trace lengths, or incorrect termination can cause data corruption in high-speed communication lines.
Solutions:
Double-Check Communication Settings: Verify that the baud rate, parity, and other communication settings are identical on both sides of the communication link. Use tools like logic analyzers or oscilloscopes to inspect the communication signals and ensure they match expectations.
Review Clock Configuration: Ensure that the clock setup for SPI or I2C is properly configured, especially when using external devices that rely on these clocks.
Improve Signal Integrity: Keep communication traces as short as possible, use proper termination, and route high-speed signals away from noisy power traces. Using differential pairs for high-speed signals like SPI can also reduce noise.
3. Software Issues and Debugging
Software-related issues can also arise during the development of embedded applications on the STM32H750VBT6. Debugging and resolving these issues often require careful inspection of the code, configuration settings, and peripheral initialization.
Possible Causes:
Incorrect Peripheral Initialization: If peripherals like timers, ADCs, or DACs are not initialized correctly, they may not function as expected or cause the system to hang.
Watchdog Timer Resets: The STM32H750VBT6 has a watchdog timer that can reset the system if the software becomes unresponsive. This can be triggered if the main application loop takes too long or enters an infinite loop.
Memory Corruption: If there are issues with stack overflow, buffer overruns, or incorrect memory Access , the software can crash or misbehave.
Solutions:
Check Peripheral Initialization: Ensure that all peripherals are correctly initialized before use. Review the STM32CubeMX configuration tool for setting up the peripherals. Always refer to the reference manual and ensure that the registers are set as needed for your application.
Watchdog Timer Management : If the watchdog timer is enabled, make sure that it is regularly refreshed in the main application loop to prevent unexpected resets. If you’re using an RTOS, ensure that the task scheduler is functioning properly.
Memory Management: Check for memory leaks, stack overflows, and buffer overflows. Use a debugger to monitor the stack and heap usage. If necessary, enable memory protection units (MPU) to prevent out-of-bound memory accesses.
4. Firmware and Driver Issues
Another common area of concern when developing with STM32H750VBT6 is dealing with firmware and driver issues. The STM32 ecosystem has a rich set of libraries and Drivers , but improper usage or outdated versions can cause issues in applications.
Possible Causes:
Outdated Firmware or HAL Drivers : Using an outdated version of STM32CubeMX, HAL libraries, or firmware can lead to compatibility issues or bugs.
Improper Driver Configuration: Incorrect driver configurations can result in non-functioning peripherals or faulty communication.
Solutions:
Update Firmware and Drivers: Regularly update the STM32CubeMX and HAL drivers to the latest versions. This ensures compatibility with newer features and bug fixes.
Check Driver Configuration: Ensure that the peripheral driver configurations are correct. Use the STM32CubeMX tool to automatically configure drivers, or manually verify the settings in the HAL driver source files.
Advanced Troubleshooting and Optimization for the STM32H750VBT6
5. Boot Issues and Firmware Corruption
Sometimes the STM32H750VBT6 might fail to boot or enter an undesired boot mode. This could be due to firmware corruption, improper bootloader settings, or issues with external memory (if used).
Possible Causes:
Corrupted Firmware: If the flash memory becomes corrupted or the firmware fails to load correctly, the microcontroller may not boot properly.
Boot Configuration Problems: Incorrect settings in the boot configuration register (BOOT0 and BOOT1) can lead to the system trying to boot from an incorrect source.
External Memory Issues: If you are using external flash or SRAM, problems with the external memory interface can prevent the system from booting.
Solutions:
Reprogram the Firmware: Use a JTAG/SWD programmer to reflash the firmware to the STM32H750VBT6. You can also use the built-in bootloader to recover from firmware corruption.
Check Boot Configuration: Verify that the BOOT0 and BOOT1 pins are configured correctly, ensuring that the microcontroller is trying to boot from the correct source (internal flash, external flash, etc.).
Test External Memory: If using external memory, test it with a simple program to ensure it is functioning correctly. Check the external memory interface for signal integrity issues.
6. Temperature and Environmental Factors
Environmental factors, such as excessive temperature or humidity, can have a significant impact on the performance and reliability of the STM32H750VBT6.
Possible Causes:
Overheating: Running the microcontroller at temperatures beyond its rated range (0°C to 85°C for commercial-grade devices) can cause instability or permanent damage.
Excessive Humidity: High humidity levels can lead to corrosion of pins or short circuits on the PCB, resulting in hardware failure.
Solutions:
Monitor Temperature: Ensure that the microcontroller operates within its rated temperature range. Use heat sinks or proper cooling techniques if the system generates significant heat.
Control Humidity: Ensure that the microcontroller is housed in an environment with controlled humidity. Use conformal coating or other protective measures to protect the PCB from moisture.
7. Performance Optimization
As a high-performance microcontroller, the STM32H750VBT6 is capable of running demanding applications. However, achieving optimal performance often requires careful tuning.
Possible Causes:
Inefficient Code: Non-optimized algorithms or excessive memory usage can limit the system’s performance.
Clock Configuration Issues: Incorrect clock settings can affect the performance of the microcontroller.
Solutions:
Profile and Optimize Code: Use debugging tools like STM32CubeIDE’s profiler to identify bottlenecks in your code. Optimize critical functions and use DMA (Direct Memory Access) for efficient data transfers.
Fine-tune Clock Configuration: Set up the microcontroller’s clock tree properly to ensure that all peripherals and the core are running at their optimal frequencies. Use the PLL (Phase-Locked Loop) to fine-tune the clock settings for high-speed applications.
8. Conclusion
The STM32H750VBT6 microcontroller is a powerful device with a vast range of applications. However, like any embedded system, it is susceptible to various hardware and software issues that can hinder development. By understanding common troubleshooting strategies and following best practices, developers can effectively overcome these challenges and achieve smooth and reliable operation.
With a focus on careful power supply design, proper initialization of peripherals, effective debugging techniques, and performance optimization, the STM32H750VBT6 can be a robust foundation for any embedded application. By addressing common pitfalls head-on, developers can ensure their designs are both efficient and resilient.
