Understanding Common Issues with the VND14NV04TR-E

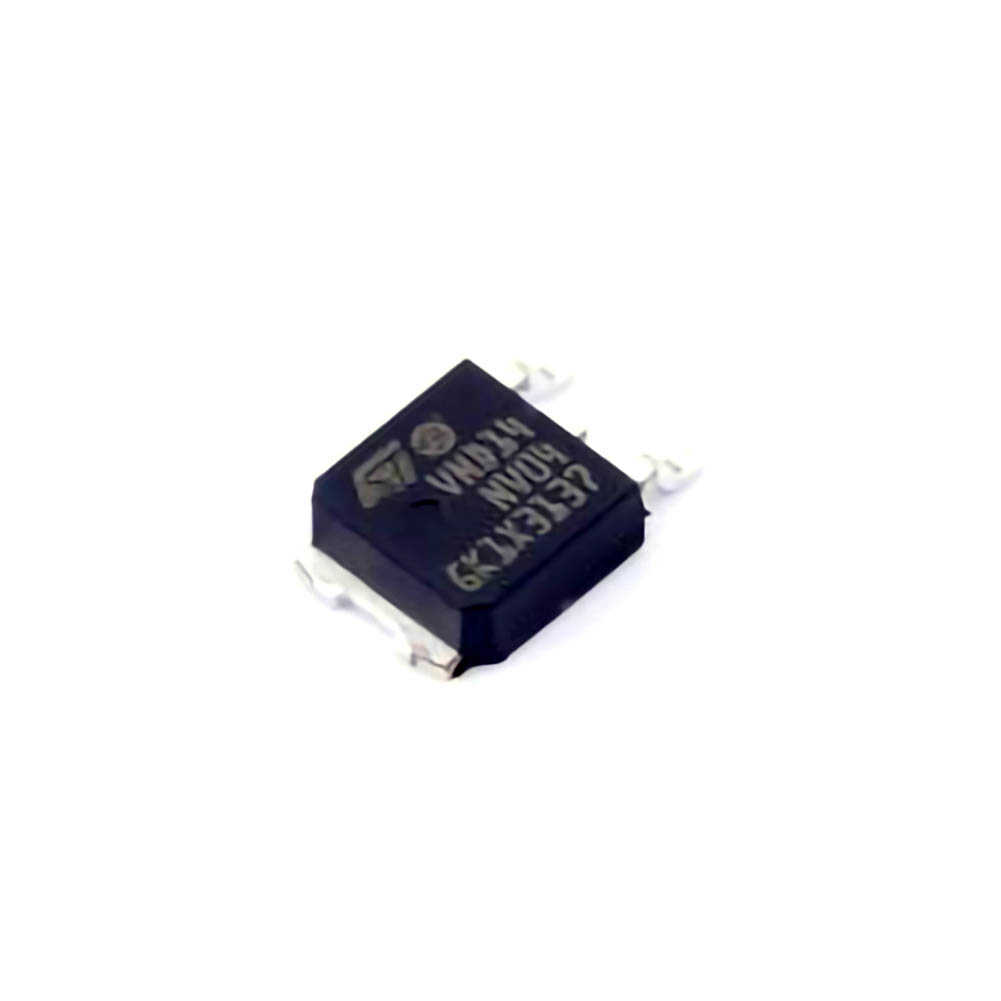

The STMicroelectronics VND14NV04TR-E, a Power relay integrated circuit commonly used in automotive and industrial applications, is designed to manage high currents and voltages efficiently. This component is essential for controlling power within systems like car lighting, motors, and other electronic devices. However, like all electronic components, the VND14NV04TR-E can sometimes experience issues that hinder its performance.
In this article, we’ll walk you through common problems faced by users of this relay, helping you understand their potential causes and equipping you with actionable troubleshooting steps.
1. Overheating and Thermal Shutdown
One of the most common problems that users encounter with the VND14NV04TR-E is overheating. If the relay is not properly heat-sinked or lacks sufficient airflow, it can exceed its thermal limits, triggering an automatic shutdown to protect the component. This can lead to the malfunctioning of your system, as the relay may intermittently stop responding to commands.
Causes:
Insufficient heat dissipation or poor ventilation.
Excessive load or current beyond the specified limits.
Continuous operation in high-temperature environments.
Troubleshooting:
Check for Adequate Cooling: Ensure that the VND14NV04TR-E is mounted properly with sufficient cooling. Consider using heat sinks or improving ventilation within the system housing.
Inspect Load Conditions: Ensure that the connected load does not exceed the component’s rated current and voltage specifications. Review the datasheet to confirm the maximum load limits.
Use Thermal Protection: If overheating is persistent, you may need to integrate external thermal protection circuits like temperature sensors or fuse protection.
2. Circuit Failures and Short Circuits
Another frequent issue with the VND14NV04TR-E is circuit failures caused by internal short circuits or incorrect wiring. This can lead to the relay failing to switch or providing erratic results, sometimes causing a complete shutdown of the system.
Causes:
Faulty wiring or poor soldering.
Internal damage due to power surges or incorrect voltage levels.
Incorrect grounding in the circuit.
Troubleshooting:
Check for Short Circuits: Inspect the relay for any visible signs of damage, such as burnt pins or melted components. Use a multimeter to test for continuity and verify that there are no shorts across the pins.
Ensure Proper Wiring: Double-check the wiring and solder joints. If the connections appear worn out or cracked, re-solder the affected points.
Check Grounding: Ensure that the relay is properly grounded and that no floating ground issues exist. A bad ground can cause erratic operation and failure of the relay.
3. Failure to Activate or Respond
Sometimes, users report that the relay fails to activate or respond when the control signal is sent. This could be caused by a variety of issues, including insufficient input voltage or a damaged control signal.
Causes:
Insufficient control voltage or current to trigger the relay.
Faulty control circuit or signal driver.
Internal failure of the relay itself.
Troubleshooting:
Verify Control Signal: Use an oscilloscope or multimeter to check the control signal’s voltage levels. Ensure that the voltage is within the specified input range for the VND14NV04TR-E.
Check the Control Circuit: Inspect the control driver circuitry for faults or component failures, such as damaged transistor s or resistors.
Test Relay Operation: If all other components seem functional, you may need to replace the relay itself, as it could be internally damaged and unable to respond to the input signal.
4. Erratic Switching or Flickering
If the relay switches intermittently or exhibits erratic behavior, it could indicate a power supply issue or an unstable control signal. This issue can cause significant problems, especially in automotive applications where consistent relay performance is crucial.
Causes:
Voltage fluctuations or power supply instability.
Noise or interference in the control signal.
Loose or unstable connections.
Troubleshooting:
Check Power Supply Stability: Ensure that the voltage supplied to the relay is stable and within the rated limits. If there is significant ripple or noise in the supply, consider adding filtering capacitor s or improving the power supply.
Inspect Signal Integrity: Check the control signal for noise or irregularities. If noise is detected, adding a low-pass filter or shielding the control lines could help.
Examine Physical Connections: Ensure all wiring and connections are tight and secure. Loose connections can cause intermittent behavior and performance issues.
Advanced Troubleshooting and Preventative Measures for VND14NV04TR-E
While common issues are relatively easy to diagnose and address, users must also be aware of advanced troubleshooting techniques and preventative measures to prolong the lifespan of the VND14NV04TR-E and ensure consistent, reliable performance.
5. Overcurrent Protection and Load Management
Overcurrent situations can be particularly damaging to the VND14NV04TR-E. A relay exposed to excessive current can suffer from internal failures, leading to a complete loss of functionality. Understanding and managing load conditions are critical in preventing this issue.
Causes:
Overcurrent situations due to faulty components or improper load management.
A mismatch between the rated current of the VND14NV04TR-E and the actual load.
Troubleshooting:
Use External Fuses or Circuit Breakers : To protect the relay from excessive current, use fuses or circuit breakers in the circuit. These devices will disconnect the load in the event of an overcurrent situation, protecting the relay from thermal damage.
Current Monitoring: Employ current sensing circuits to continuously monitor the current draw and detect any abnormal conditions before they cause damage.
6. Voltage Spikes and Protection
Automotive systems are susceptible to voltage spikes caused by sudden surges in power, typically from engine startups or sudden load changes. These spikes can severely damage the VND14NV04TR-E if not properly managed.
Causes:
Voltage spikes from the power supply or sudden load changes.
Lack of transient voltage suppression or proper clamping.
Troubleshooting:
Install Transient Voltage Suppressors ( TVS ): These components can protect the VND14NV04TR-E by clamping excess voltage spikes, preventing them from reaching damaging levels.
Use Diodes for Protection: Diode s like flyback diodes can help protect the relay by redirecting excess energy away from the relay during switching events.
7. Component Aging and Wear
Like all electronic components, the VND14NV04TR-E is subject to aging over time. Continuous operation, especially under high loads or in extreme conditions, can lead to gradual degradation in performance.
Causes:
Long-term exposure to high temperatures, overcurrent, or environmental stress.
Gradual wear and tear on internal components.
Troubleshooting:
Monitor Relay Performance: Regularly test and monitor the relay’s switching behavior and load handling. This will help detect early signs of aging and allow for timely replacement before a failure occurs.
Design for Longevity: When designing systems, consider using components with a higher rating or incorporating additional protection features that can extend the life of the relay.
8. Preventative Maintenance Tips
Maintaining the VND14NV04TR-E and the overall circuit is key to ensuring long-term reliability and performance. Proactive maintenance can help avoid many common issues.
Preventative Measures:
Regular Inspections: Periodically inspect the relay and surrounding components for signs of wear, corrosion, or physical damage. Clean the relay’s contacts if necessary to prevent arcing and poor connection.
Environmental Protection: Ensure that the relay is installed in environments free from excessive moisture, dust, or corrosive elements that could damage the component.
Use Quality Components: Always use high-quality components, including connectors, capacitors, and resistors, to avoid the risk of failure due to substandard parts.
Conclusion
The VND14NV04TR-E is a highly reliable and robust component, but like any piece of electronic equipment, it requires careful attention to ensure its proper operation. By following these troubleshooting and preventative maintenance steps, you can address common issues such as overheating, circuit failures, erratic switching, and voltage spikes. With proper care and understanding, this powerful relay can serve you well for years, ensuring efficient operation in automotive and industrial applications.
Description (Continued): This article emphasizes the importance of preventative measures, advanced troubleshooting, and understanding the conditions under which the VND14NV04TR-E operates most effectively. From voltage spike protection to overcurrent management, the solutions outlined here will help users maintain optimal performance and minimize downtime.
