Introduction to the NC7SZ04M5X and Common Issues
The onsemi NC7SZ04M5X is a high-performance, single inverter gate from ON Semiconductor, designed for use in a wide range of digital circuits. As with any integrated circuit (IC), users may encounter performance issues or difficulties during development. Understanding the common challenges and how to resolve them is critical for maintaining reliability and efficiency in your circuits.

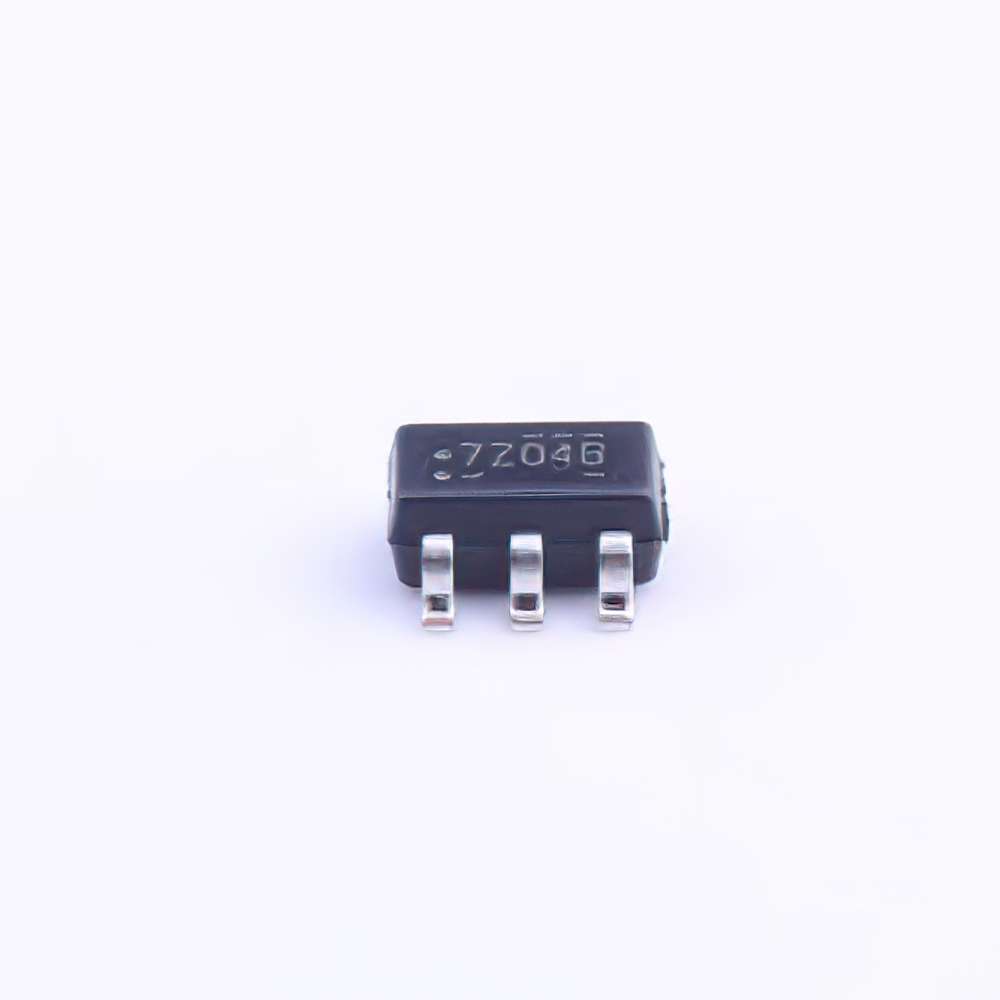

Overview of the NC7SZ04M5X
The NC7SZ04M5X is part of the Series 7 family, which is known for its low-voltage and high-speed operation. It features a Schmitt-trigger input, making it robust against noise and glitches, ideal for high-speed digital circuits. Its small package and low Power consumption make it a popular choice for modern electronic devices.
However, due to the complexity of modern circuit designs, users often encounter issues during implementation. Below are the most common problems with the NC7SZ04M5X and how to troubleshoot them.
Common Issues with the NC7SZ04M5X
Power Supply Issues
One of the most common sources of issues in digital circuits is improper power supply connections. If the NC7SZ04M5X does not receive the correct supply voltage, it may not function as expected.
The device is designed to operate between a voltage range of 1.65V to 5.5V, with 3.3V being the most common operating voltage. An incorrect voltage can lead to erratic behavior, malfunctioning, or even permanent damage.
Signal Integrity Problems
The Schmitt-trigger input is designed to reduce susceptibility to noise, but improper PCB layout or high-frequency signals can still lead to signal integrity issues.
Noise from surrounding components or poor routing can cause spurious triggering or unstable output.
Incorrect Logic Behavior
If the NC7SZ04M5X exhibits incorrect logic behavior, such as outputs not matching the expected inverting behavior, several factors could be at play.
This can include issues such as short circuits, incorrect wiring, or component failure. Identifying these problems often requires a systematic approach to inspecting the surrounding circuit elements.
Thermal Management Problems
Excessive heat can affect the performance of the NC7SZ04M5X. If the device is not adequately dissipating heat, it may enter thermal shutdown or experience reduced efficiency.
Small package sizes, although efficient, are prone to heat buildup if the circuit design does not account for adequate thermal dissipation.
Intermittent Operation
One of the most frustrating issues to deal with is intermittent operation. This often occurs when there is a slight fluctuation in the power supply or an unstable signal input.
The NC7SZ04M5X is designed to be robust, but unreliable external conditions can still result in unstable performance.
Troubleshooting Power Supply Issues
Power-related issues are often the root cause of a wide range of problems with digital ICs. To troubleshoot power supply problems, follow these steps:
Check the Voltage Level: Use a multimeter or oscilloscope to verify the supply voltage to the NC7SZ04M5X. Ensure it is within the specified range of 1.65V to 5.5V, and check for any voltage fluctuations that might affect the device’s performance.
Verify Ground Connections: A floating or weak ground can cause the device to malfunction. Ensure that the ground pin is securely connected to the common ground plane of your circuit.
Inspect Power Distribution: If your circuit includes multiple components powered by the same supply, ensure that power is distributed evenly and without significant drops in voltage.
Use Decoupling capacitor s: To mitigate noise and voltage spikes, use decoupling Capacitors close to the NC7SZ04M5X. Capacitors of 0.1 µF are commonly used to stabilize the power supply.
Addressing Signal Integrity Problems
Signal integrity issues are common in high-speed digital circuits. To address potential problems with the NC7SZ04M5X:
Minimize Noise: Place the NC7SZ04M5X away from noisy components like high-frequency oscillators, motors, or power supplies. Shielding may also be necessary if the circuit operates in a high-electromagnetic environment.
Improve PCB Layout: Ensure that the routing of the PCB minimizes trace lengths between the input and output of the NC7SZ04M5X. Keep the signal traces as short as possible and avoid sharp corners in the routing to reduce parasitic inductance and capacitance.
Use Pull-up or Pull-down Resistors : If the input signal is prone to noise, consider using pull-up or pull-down resistors to stabilize the logic level.
Use Proper Termination: In high-speed circuits, using series termination resistors on signal lines can help reduce reflections and improve signal quality.
Diagnosing Incorrect Logic Behavior and Thermal Management Solutions
Troubleshooting Incorrect Logic Behavior
The NC7SZ04M5X is designed to provide reliable inverting logic. However, if it produces unexpected results, follow these diagnostic steps:
Check Input Signals: Ensure that the input signal is within the required voltage range for the logic level (typically 0V to Vcc). If the input voltage is ambiguous, the output may behave unpredictably.
Inspect for Short Circuits: One of the most common causes of incorrect logic behavior is a short circuit either on the input or output pins. Use a multimeter in continuity mode to check for any unintended connections that could be affecting performance.
Verify Output Conditions: If the output is not responding as expected, measure the voltage at the output pin under various input conditions. Compare the actual results to the expected behavior (inverting). If there is a discrepancy, check the surrounding components and PCB connections.
Examine IC Pinouts: Ensure that the NC7SZ04M5X’s pins are correctly connected according to the datasheet. A common error is misplacing the input and output connections or incorrectly grounding pins.
Check for Component Damage: If the NC7SZ04M5X is exposed to overvoltage or static discharge, it may become damaged. Test the device in isolation to see if it functions correctly without the surrounding circuitry.
Thermal Management and Overheating Solutions
While the NC7SZ04M5X operates efficiently at low power, inadequate thermal management can still cause performance degradation. To prevent overheating issues:
Check for Excessive Current Draw: Use a current probe to check the current draw of the NC7SZ04M5X. Excessive current can lead to overheating and should be addressed by improving the power supply or optimizing the design.
Improve Heat Dissipation: If your design requires a large number of NC7SZ04M5X devices or operates in a high-temperature environment, consider using a larger package or additional heat sinks to improve heat dissipation.
Use Thermal Relief Pads: For smaller packages, thermal relief pads or vias can be added to the PCB to better conduct heat away from the IC.
Monitor Ambient Temperature: Ensure that the ambient temperature does not exceed the operating range of the NC7SZ04M5X. If the circuit operates in a hot environment, additional cooling methods, such as fans or heat sinks, may be required.
Solving Intermittent Operation Issues
Intermittent operation is a frustrating problem that may be caused by a variety of factors, including noise, power instability, or poor component quality. To resolve these issues:
Check for Loose Connections: Ensure that all connections to the NC7SZ04M5X are secure, especially the power and ground pins. Loose connections can lead to intermittent operation or failure to start.
Test Under Different Conditions: If the problem occurs intermittently, test the circuit under different operating conditions such as varying voltage levels, signal frequencies, or environmental temperatures.
Eliminate External Interference: Ensure that the device is not being influenced by nearby electronic components or strong electromagnetic fields. Using shielding or relocating the device in the circuit may help.
Stabilize Input Signals: If the input signal is unstable, consider adding filtering components like capacitors or resistors to stabilize the logic level.
Use Oscilloscopes for Diagnosis: Intermittent problems can be tricky to identify, so using an oscilloscope to monitor signal behavior over time can help pinpoint the cause.
In conclusion, while the NC7SZ04M5X is a reliable and efficient logic gate, common issues such as power supply problems, signal integrity concerns, and thermal management can hinder its performance. By following the troubleshooting steps outlined in this article, you can effectively diagnose and resolve most issues, ensuring the successful integration of the NC7SZ04M5X in your digital designs.
