Common Hardware and Software Troubleshooting Issues with LPC55S69JBD100

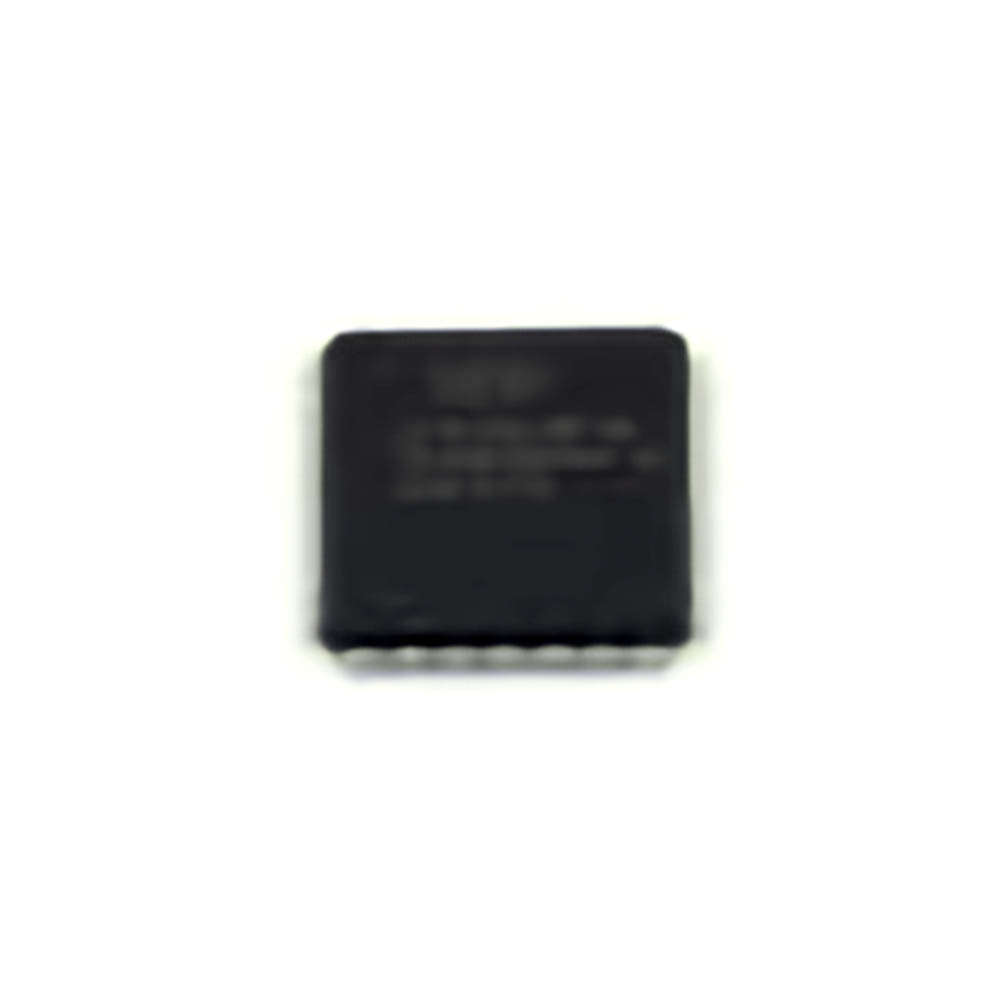

The NXP LPC55S69JBD100, based on ARM Cortex-M33, is a Power ful microcontroller with a rich set of features. Despite its robust design, like all embedded systems, it can encounter specific issues that hinder its performance. Whether you’re dealing with hardware connection issues, software bugs, or power-related anomalies, addressing these problems efficiently is key to ensuring the MCU operates as expected.
1. Power Supply Issues
A frequent issue with any microcontroller is improper power supply, and the LPC55S69JBD100 is no exception. The board can experience unexpected resets, erratic behavior, or complete failure to boot if the voltage is unstable or inadequate. Common causes of power issues include:
Incorrect Voltage: Always ensure that the voltage supplied to the LPC55S69JBD100 board is within the specified range (1.8V to 3.6V for the core voltage). A higher or lower voltage could result in unreliable performance or permanent damage to the MCU.
Insufficient Power Current: If the board is underpowered, especially when peripherals or other components are added, it might exhibit erratic behaviors. Ensure the power supply can handle the peak current demands of the MCU and its peripherals.
Solution: Use a stable and regulated power source that matches the microcontroller’s requirements. Additionally, check the current ratings of the power supply and add appropriate decoupling capacitor s close to the power pins to stabilize voltage fluctuations.
2. Boot Failures and Reset Issues
A common problem that users face with the LPC55S69JBD100 is boot failures or unexpected resets. These issues typically occur when the MCU fails to load the program from its flash Memory or enters an unintended reset loop.
Possible Causes:
Corrupted Flash Memory: If the firmware is corrupted or improperly programmed, the MCU may fail to boot properly.
Watchdog Timer Reset: The LPC55S69JBD100 has a built-in watchdog timer that resets the MCU if it does not receive a refresh signal within a specified period. If the firmware is stuck or running into an infinite loop, the watchdog timer may reset the system repeatedly.
Solution:
Verify that the firmware is correctly programmed into the MCU flash memory using a reliable programming tool, such as J-Link or OpenSDA.
If using the watchdog timer, make sure the software periodically resets it to avoid unintentional resets. In cases where this is not possible, disable the watchdog timer for debugging.
3. GPIO Pin Configuration Issues
The General Purpose Input/Output (GPIO) pins on the LPC55S69JBD100 can be a source of issues, especially if they are incorrectly configured. Improper settings of input/output modes, or failure to configure internal pull-up or pull-down resistors, can lead to unexpected behavior.
Possible Causes:
Incorrect Pin Direction: Misconfiguring a GPIO pin as an output when it is supposed to be an input (or vice versa) can cause incorrect readings or control failures.
No Pull-up/Pull-down Resistor: Many GPIO pins need internal pull-up or pull-down resistors to ensure stable voltage levels. Failure to set them can result in floating pins that pick up noise, leading to inconsistent behavior.
Solution:
Double-check the GPIO configuration in the firmware and ensure that each pin is set correctly as input or output.
Use the appropriate internal pull-up or pull-down resistors for unused pins or those that need to maintain a steady logic level.
4. Clock ing Issues
Clock instability or improper configuration of the system clock is another common issue in embedded systems. The LPC55S69JBD100 uses various internal and external clocks, and if any of these are misconfigured, the MCU may fail to run as expected.
Possible Causes:
External Oscillator Failures: If you are using an external oscillator or clock source, failure to properly configure the MCU to use that source can lead to clock signal loss or instability.
Incorrect Clock Dividers : The LPC55S69JBD100 allows you to configure the system clock with different dividers, and incorrect settings could lead to a clock frequency that is too high or too low for stable operation.
Solution:
Ensure that external clock sources are correctly wired and configured. Double-check that the startup sequence for external oscillators is complete before switching to the external clock.
If using internal clock sources, verify that the system clock dividers are set according to the MCU’s requirements and that the MCU is running within the specified frequency range.
5. Debugging the LPC55S69JBD100
When encountering issues, debugging is crucial to identify the root cause. There are several ways to debug and monitor the LPC55S69JBD100’s performance.
Possible Causes:
Unresponsive MCU: In some cases, the MCU may appear unresponsive due to either a software hang or hardware failure.
Hardware Breakpoints: In some debugging scenarios, the MCU may have hardware breakpoints set incorrectly, causing the MCU to stop executing code unexpectedly.
Solution:
Use a debugging tool like J-Link or an equivalent SWD (Serial Wire Debug) interface to trace the execution of the MCU code. If the MCU is unresponsive, check for issues with the firmware initialization or reset conditions.
Check for any hardware breakpoints that might be unintentionally set. Ensure the debugger is connected correctly and that no hardware configuration issues are preventing Communication .
Advanced Troubleshooting and Optimizing the LPC55S69JBD100
After addressing the common issues discussed in Part 1, there are advanced troubleshooting techniques and optimization methods that can improve the performance and reliability of the LPC55S69JBD100 microcontroller. These techniques are designed for experienced developers who want to push the capabilities of the MCU to their maximum potential.
1. Thermal and Overclocking Issues
Like any powerful MCU, the LPC55S69JBD100 is susceptible to overheating, especially when overclocked or subjected to high power demands. Overheating can cause the MCU to behave erratically, crash, or even become permanently damaged.
Possible Causes:
Overclocking: Running the MCU at higher clock speeds than specified can cause thermal stress, leading to instability or failure.
Inadequate Cooling: If the board is enclosed or placed in a high-temperature environment without sufficient heat dissipation, the MCU may overheat.
Solution:
Ensure the MCU is running within the specified clock speed and voltage range to avoid overheating. Consider using heat sinks or active cooling solutions for high-performance applications.
Regularly monitor the MCU’s temperature using software or hardware sensors, and take action if temperatures exceed safe operating levels.
2. Communication and Peripheral Interfacing Issues
The LPC55S69JBD100 offers various communication peripherals, including UART, SPI, I2C, and USB. Improper configuration or incompatible hardware interfacing can cause communication failures or data corruption.
Possible Causes:
Mismatched Baud Rates: In UART communication, for example, mismatched baud rates between the MCU and connected device can lead to data loss or corruption.
Incorrect Pin Assignments: Incorrect pin assignments for SPI or I2C peripherals can prevent successful communication with external devices.
Solution:
Verify that the communication protocols (baud rate, parity, stop bits for UART, etc.) are correctly configured and match the specifications of connected devices.
Ensure that the correct pins are assigned for the desired communication peripherals and that any required pull-up/pull-down resistors are in place.
3. Interrupt Handling and Latency Issues
Interrupt-driven systems can experience issues related to interrupt priority, latency, or incorrect handling of interrupt vectors. These problems can cause missed interrupts, system delays, or failure to respond to real-time events.
Possible Causes:
Interrupt Priority Conflicts: Conflicts between interrupt sources that share the same priority can result in missed interrupts or delays in response.
Long Interrupt Service Routines (ISRs): Long-running ISRs can delay the processing of other interrupts, leading to latency in the system’s response.
Solution:
Review the interrupt priority configuration to ensure that critical interrupts are given higher priority than less critical ones.
Keep ISRs as short as possible. Offload time-consuming tasks from the ISR to main processing loops to reduce latency.
4. Memory Leaks and Stack Overflow
Memory management is essential in embedded systems to ensure reliable performance. The LPC55S69JBD100 has ample RAM and flash memory, but if not properly managed, memory leaks and stack overflows can lead to unexpected crashes or memory corruption.
Possible Causes:
Dynamic Memory Allocation: Improper use of dynamic memory allocation (e.g., malloc) can result in memory leaks, consuming available memory over time.
Stack Overflow: Recursive function calls or excessive local variables in functions can cause the stack to overflow, leading to crashes or erratic behavior.
Solution:
Use memory management tools or techniques to detect and prevent memory leaks. Consider using static memory allocation where possible.
Monitor the stack size and ensure that it is appropriately sized for the application’s needs. Avoid deep recursion, and consider optimizing algorithms to use less stack memory.
5. Firmware Optimization for Performance
Optimizing the firmware can improve the overall performance of the LPC55S69JBD100, ensuring that it runs efficiently even under heavy loads.
Possible Solutions:
Code Profiling: Use tools to profile the code and identify performance bottlenecks. Optimize critical sections to reduce CPU cycles and improve responsiveness.
Use of DMA: For peripherals that support Direct Memory Access (DMA), use it to offload data transfer tasks from the CPU and free up processing power for other tasks.
By understanding and addressing these common troubleshooting and optimization issues, developers can maximize the performance and reliability of the LPC55S69JBD100 microcontroller. Whether it’s hardware-related problems, software bugs, or complex system configurations, these solutions can help resolve most challenges and ensure that your project runs smoothly.
