Explore practical solutions for mitigating heat-induced failures in MURS320T3G Diodes . This article delves into common causes, preventive measures, and effective fixes to enhance Diode reliability, ensuring longer lifespan and improved performance in high-temperature environments.
Understanding Heat-Induced Failures in MURS320T3G Diodes

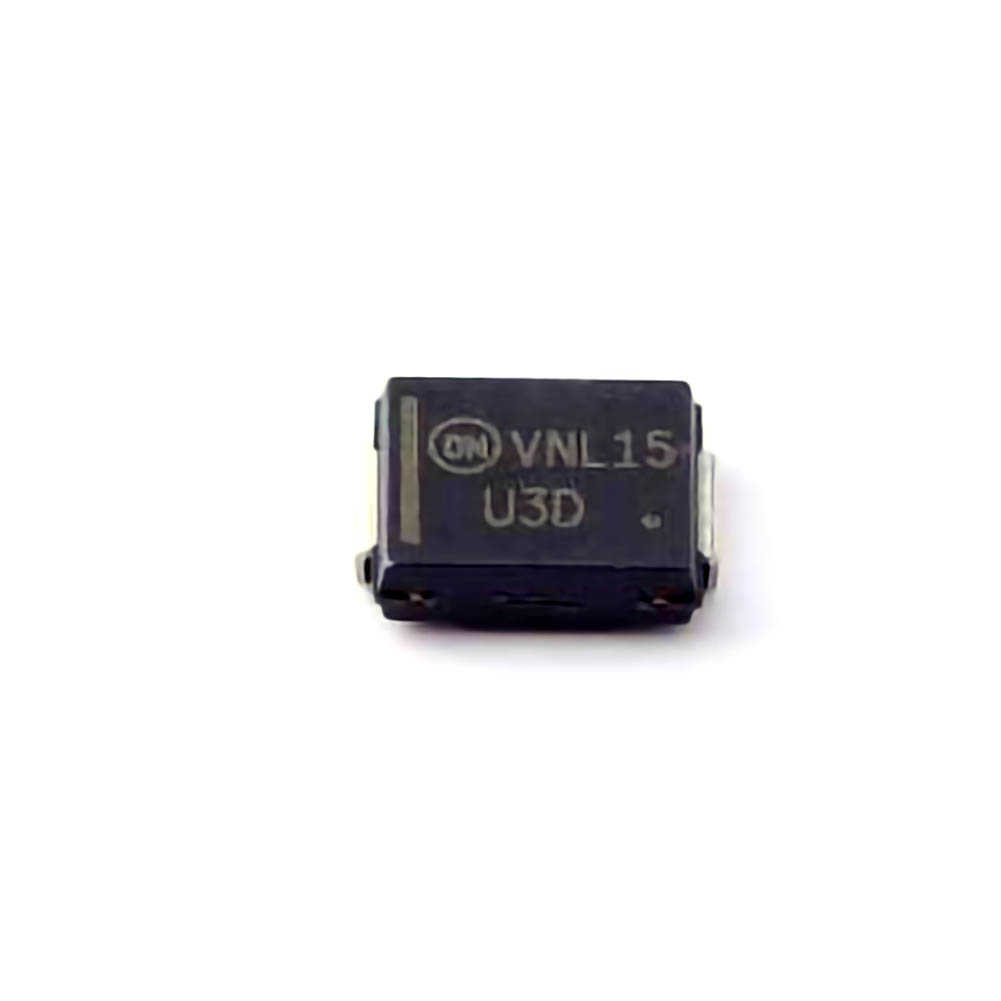

Introduction to MURS320T3G Diodes
The MURS320T3G is a widely used Schottky barrier rectifier diode, known for its low forward voltage drop, fast switching capabilities, and high efficiency in Power electronic applications. It is frequently employed in power supplies, voltage regulators, and other high-performance electronic circuits that require rapid switching and minimal heat generation under standard conditions.
However, like all electronic components, MURS320T3G diodes are susceptible to thermal failure. Overheating can compromise their performance, leading to system instability or even complete failure of the device. In this article, we explore the causes of heat-induced failures in MURS320T3G diodes and provide effective solutions to prevent such failures.
Causes of Heat-Induced Failure
Heat-induced failure in diodes typically occurs when the thermal load exceeds the component’s rated maximum operating temperature. The MURS320T3G diode, like other semiconductor devices, has a specific temperature range within which it operates efficiently. Exceeding this range can cause irreversible damage to the internal structure of the diode, leading to a degradation in performance or failure.
Several factors contribute to heat accumulation in diodes:
Excessive Current Flow: When excessive current is passed through the diode, it results in increased power dissipation in the form of heat. If this heat is not adequately managed, it can quickly elevate the temperature of the diode beyond safe operating limits.
High Switching Frequency: The MURS320T3G is used in high-speed switching applications. However, high switching frequencies generate heat due to the rapid charge and discharge cycles, which can result in thermal stress if not properly managed.
Inadequate Heat Dissipation: If the diode is not properly cooled or is housed in an environment with poor thermal conductivity, heat can accumulate and cause the junction temperature to rise. Without effective heat sinking or cooling solutions, the diode will overheat and potentially fail.
Ambient Temperature: Operating in high ambient temperatures can exacerbate thermal issues, as the diode’s heat will not dissipate efficiently, making it more prone to overheating.
Improper Mounting or Placement: The physical placement of the diode within a circuit board or device can influence how heat is managed. A diode placed near other heat-generating components or in a tight, confined space may not be able to dissipate heat effectively, contributing to thermal failure.
Consequences of Heat-Induced Failure
When heat causes the MURS320T3G diode to fail, the consequences can range from minor performance degradation to total failure. Some of the more common symptoms of heat-induced diode failure include:
Increased Forward Voltage Drop: As the diode overheats, the forward voltage drop can increase, reducing efficiency and performance.
Reduced Switching Speed: Overheating can affect the diode’s ability to switch quickly, which is critical in many power conversion applications.
Complete Diode Failure: In extreme cases, heat can lead to catastrophic failure, where the diode no longer conducts current or exhibits erratic behavior, which may cause circuit malfunction or complete breakdown of the system.
Reduced Lifespan: Even if immediate failure does not occur, prolonged exposure to high temperatures can shorten the operational lifespan of the diode, leading to premature failure down the line.
Mitigating Heat-Induced Failures: Prevention Strategies
To ensure reliable operation and prevent heat-induced failures, several strategies can be employed in the design and operation of MURS320T3G diodes.
1. Current Limiting and Proper Sizing
One of the most effective ways to prevent thermal failure is by ensuring that the diode is not subjected to excessive current flow. The MURS320T3G diode is rated for specific current levels, and exceeding this limit can cause thermal runaway. By carefully selecting the right diode for the application and ensuring proper current-limiting mechanisms are in place, you can significantly reduce the risk of overheating.
Practical Tip: Always choose a diode with a margin above the maximum current expected in the circuit. For example, if the expected current is 2A, selecting a diode rated for 3A or more provides a buffer to account for transient spikes.
2. Enhancing Thermal Management
Effective thermal management is crucial for preventing heat buildup around the diode. This can be achieved through several methods:
Heat Sinks: Attaching a heat sink to the diode’s package can significantly improve heat dissipation. The larger the surface area of the heat sink, the more heat it can dissipate, preventing the junction temperature from rising too high.
Thermal Pads and Interfaces: Use high-quality thermal pads or thermal pastes between the diode and its heat sink or the PCB. This ensures efficient thermal transfer and prevents hotspots.
Active Cooling: For high-power applications, active cooling solutions such as fans or liquid cooling systems may be necessary to keep the diode cool under load.
3. PCB Design Considerations
The design of the PCB plays a critical role in heat dissipation. Using a PCB with a low thermal resistance path between the diode and the external environment can significantly reduce thermal buildup.
Copper Plane: Implementing a large copper plane near the diode helps to spread heat more evenly and away from the diode.
Thermal Vias: Using thermal vias to connect the top copper layer to the bottom layer of the PCB can help transport heat away from the diode, further improving its cooling.
4. Optimal Placement of Diodes
Proper placement of the diode on the PCB can also help minimize thermal issues. Avoid placing the MURS320T3G diode in close proximity to other high-heat components like voltage regulators or power transistor s. Ensuring that the diode has adequate airflow and is not surrounded by heat-sensitive components is key.
Practical Solutions and Tools to Prevent Heat-Induced Failures in MURS320T3G Diodes
5. Implementing Robust Thermal Shutdown and Monitoring Circuits
In critical applications, it is essential to monitor the temperature of the MURS320T3G diode and prevent overheating through thermal shutdown or other protection mechanisms.
Thermal Shutdown Circuits: These circuits monitor the diode’s temperature in real-time and automatically shut off the power supply or reduce current if the temperature exceeds safe limits. This prevents thermal runaway and protects both the diode and the entire circuit from catastrophic damage.
Thermal Sensors and Alerts: Integrating thermal sensors in the vicinity of the diode allows for real-time temperature monitoring. Alerts or warnings can be generated when temperatures approach critical thresholds, enabling the operator to take preventive action before failure occurs.
6. Choosing the Right Diode for the Application
When designing a system that includes MURS320T3G diodes, it’s important to assess whether the chosen diode is the most appropriate for the specific application. Considerations such as the current and voltage requirements, switching frequency, and expected operating temperatures should guide the selection process.
If the application involves higher currents, higher switching frequencies, or extreme environmental conditions, it might be beneficial to opt for a diode with better thermal performance or higher current-handling capabilities. For example, diodes with higher power ratings or those specifically designed for high-temperature operation can offer better reliability in harsh conditions.
7. Using Alternative Diodes with Improved Thermal Performance
In some cases, switching to alternative diodes with enhanced thermal performance may be necessary. For example, while the MURS320T3G is a popular choice, other diodes, such as the MUR410 or other Schottky diodes with different thermal characteristics, may be better suited for specific high-temperature environments.
Schottky diodes, while known for their fast switching and low forward voltage drop, can also suffer from heat buildup. Exploring alternatives or advanced packaging techniques, such as surface-mount devices (SMD) with integrated heat sinks, can help mitigate thermal failure.
8. Using Power Efficiency Optimization Techniques
In addition to addressing thermal management directly, optimizing the efficiency of the overall circuit can significantly reduce the power dissipated by the diode, thus minimizing heat generation. Some techniques include:
Switching Mode Power Supply (SMPS): Rather than using linear regulators, which dissipate power as heat, switching mode power supplies are far more efficient, reducing the stress on the diodes and other components.
Optimal PWM Control: For circuits that use pulse-width modulation (PWM), fine-tuning the duty cycle can help reduce the power loss in the MURS320T3G diode, as well as in other components, further mitigating thermal issues.
Conclusion
Heat-induced failures in MURS320T3G diodes are a common problem that can affect the performance and lifespan of electronic devices. By understanding the causes of thermal failures and implementing effective solutions such as current limiting, enhanced thermal management, PCB optimization, and monitoring systems, the risk of failure can be significantly reduced. By applying these strategies, engineers and designers can ensure that MURS320T3G diodes, and similar components, operate reliably even in high-temperature environments, thus enhancing the overall performance and longevity of their devices.
