Understanding LM6172IMX/NOPB and Common Troubleshooting Issues

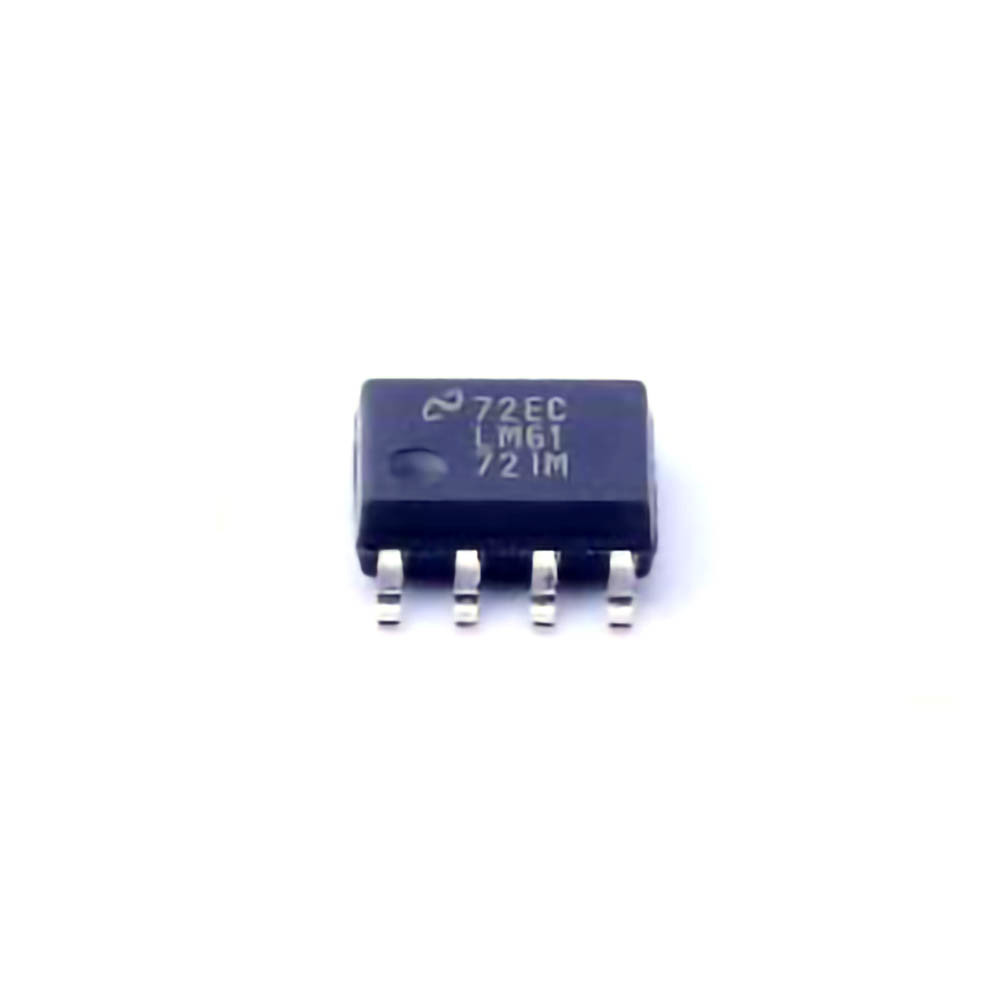

The LM6172IMX/NOPB is a high-speed, low- Power operational amplifier from Texas Instruments, renowned for its impressive bandwidth, low input noise, and high slew rate. This makes it an ideal choice for applications in audio systems, signal processing, and instrumentation, where precision and performance are crucial. However, despite its outstanding features, the LM6172IMX/NOPB can face certain operational challenges when integrated into a circuit. By understanding these potential issues and how to troubleshoot them, engineers can maintain their designs’ stability and efficiency.
1. Power Supply Problems
The LM6172IMX/NOPB requires a stable power supply for optimal performance. Common power supply-related issues include voltage fluctuations, inadequate power levels, and poor grounding. These can lead to erratic behavior in the amplifier, such as distortion, oscillation, or even complete failure.
Solution:
Check the Power Supply: Ensure that the supply voltage to the LM6172IMX/NOPB is within the recommended range. Typically, the device operates with a single supply voltage ranging from 3V to 36V or a dual-supply configuration of ±1.5V to ±18V. Verify that the supply rails are stable and free from noise or ripple.
Grounding: Proper grounding is essential for the device to function correctly. A floating ground or ground loops can introduce noise and instability. Make sure that the ground plane is solid and well-connected to prevent such issues.
Decoupling capacitor s: Place Capacitors close to the supply pins of the LM6172IMX/NOPB. This helps filter out high-frequency noise and improves the stability of the power supply.
2. Improper PCB Layout
PCB layout is crucial for the performance of any operational amplifier. Poor layout practices can lead to issues such as noise coupling, signal degradation, and even malfunctioning of the LM6172IMX/NOPB. For instance, long signal traces, inadequate decoupling, or improper placement of components can cause parasitic inductance and capacitance that interfere with the amplifier’s performance.
Solution:
Minimize Trace Lengths: Keep signal and power traces as short as possible. This reduces parasitic inductance and capacitance that can affect the amplifier’s performance.
Separate Power and Signal Grounds: Use a star grounding configuration where the signal ground and power ground are connected at a single point. This reduces the chances of ground loops and noise coupling.
Use Adequate Decoupling: Place high-frequency decoupling capacitors (typically 0.1µF to 10µF) near the supply pins of the amplifier to suppress any high-frequency noise.
3. Input Offset Voltage Issues
The LM6172IMX/NOPB, like other operational amplifiers, has a small input offset voltage. While typically low, variations in temperature or aging components can cause the input offset to shift, leading to inaccurate output signals, especially in precision applications.
Solution:
Offset Voltage Adjustment: If precise voltage control is required, use an external offset voltage adjustment circuit. Many designs include a potentiometer or trim pin to manually nullify the offset voltage.
Use a Chopper-Stabilized Op-Amp: In extremely precision applications, consider using a chopper-stabilized amplifier or one with a much lower input offset voltage if the problem persists despite adjustments.
4. Overheating and Thermal Runaway
Thermal Management is vital for high-performance components like the LM6172IMX/NOPB. If the amplifier operates at high currents or in a poorly ventilated environment, it may overheat. This can result in thermal runaway, where increased temperature leads to further instability and failure of the device.
Solution:
Adequate Cooling: Ensure proper heat dissipation by using heat sinks or providing adequate ventilation around the device. Also, make sure that the operating current and voltage are within the recommended range to prevent excessive power dissipation.
Monitor Temperature: Use thermal sensors or simply monitor the device temperature to prevent overheating. This can help identify potential issues before they cause permanent damage to the component.
5. Oscillations and Stability Problems
Oscillation is a common issue in high-speed operational amplifiers like the LM6172IMX/NOPB. This often happens when the amplifier is driven into an unstable configuration or when it’s not correctly compensated for the particular circuit conditions.
Solution:
Check Feedback Network: Ensure that the feedback network is designed correctly, and that the resistor and capacitor values are optimal for stability. In some cases, adding small capacitors (e.g., 10pF to 100pF) from the output to the inverting input can help suppress oscillations.
Compensation Capacitors: Some designs may require additional compensation capacitors to ensure the stability of the operational amplifier at higher frequencies. These should be placed carefully to avoid adversely affecting the bandwidth or response time.
Advanced Troubleshooting for LM6172IMX/NOPB and Best Practices
6. Input Overdrive and Clipping
When the input signal to the LM6172IMX/NOPB exceeds the device’s input voltage range, the amplifier can enter a state of clipping. In this state, the output becomes saturated and loses linearity, leading to signal distortion. Clipping can occur due to incorrect input signal levels, particularly when the voltage exceeds the supply rails.
Solution:
Input Signal Limiting: Ensure that the input signal remains within the operational range of the LM6172IMX/NOPB. For single-supply operation, the input voltage should stay within the range of 0V to V (typically the positive supply voltage), and for dual-supply operation, the input should be within the range of ±V.
Use Clipping Protection Circuits: To prevent input overdrive, consider using protection diodes or clamping circuits at the input stage. These components can limit the input voltage and prevent it from exceeding the device’s maximum allowable input range.
7. Output Swing Issues
The LM6172IMX/NOPB is designed to offer rail-to-rail output, meaning the output can swing very close to both the positive and negative supply rails. However, under certain load conditions, the output may fail to reach these limits, affecting the performance of the overall circuit.
Solution:
Check Load Resistance : Ensure that the load connected to the amplifier is within the recommended range. If the load resistance is too low, the output may not be able to drive the load properly, leading to reduced swing or distortion.
Increase Output Drive Capability: If the output swing is insufficient, consider buffering the output with an additional stage, such as a transistor or another amplifier, to increase the drive capability.
8. Power-Up and Power-Down Sequences
Improper power-up or power-down sequences can cause various issues in the LM6172IMX/NOPB. For example, if the supply voltages are not applied or removed in the correct order, the internal circuitry of the amplifier may malfunction or suffer damage.
Solution:
Follow Recommended Power Sequencing: Always follow the manufacturer’s recommendations for power-up and power-down sequencing. Typically, this means powering up the positive supply first and then the negative supply (in dual-supply configurations) and powering them down in reverse order.
Use Power-On Reset Circuits: In some cases, implementing a power-on reset circuit can ensure that the amplifier is properly initialized before it begins operation, avoiding problems during power-up.
9. Performance Degradation Over Time
Over time, the LM6172IMX/NOPB may experience a degradation in performance due to factors like aging of components, particularly electrolytic capacitors, or shifts in temperature and humidity. These environmental changes can lead to a gradual decline in the amplifier’s efficiency.
Solution:
Routine Maintenance: Regularly inspect and replace any components that may degrade over time, particularly electrolytic capacitors, which can dry out or lose capacitance.
Temperature Compensation: If your design is exposed to fluctuating temperatures, consider implementing temperature compensation techniques to minimize performance degradation due to temperature changes.
10. Best Practices for Long-Term Reliability
To ensure the long-term reliability of your LM6172IMX/NOPB designs, follow these best practices:
Design for Margin: Ensure that your circuit operates well within the specified limits of the LM6172IMX/NOPB. Avoid pushing the device to its maximum ratings.
Use Quality Components: Always use high-quality, reliable components in your circuit to ensure that the amplifier performs optimally over time.
Thermal Management : Implement proper thermal management techniques, such as using heat sinks and adequate ventilation, to prevent overheating and ensure long-lasting operation.
Conclusion
Troubleshooting the LM6172IMX/NOPB requires a combination of understanding its potential issues, using correct design practices, and applying appropriate solutions when problems arise. By addressing common issues such as power supply problems, improper PCB layout, and input offset voltage, engineers can maximize the performance of this high-speed operational amplifier. Additionally, following best practices for stability, signal integrity, and long-term reliability will ensure that the LM6172IMX/NOPB continues to meet the needs of demanding applications for years to come.
